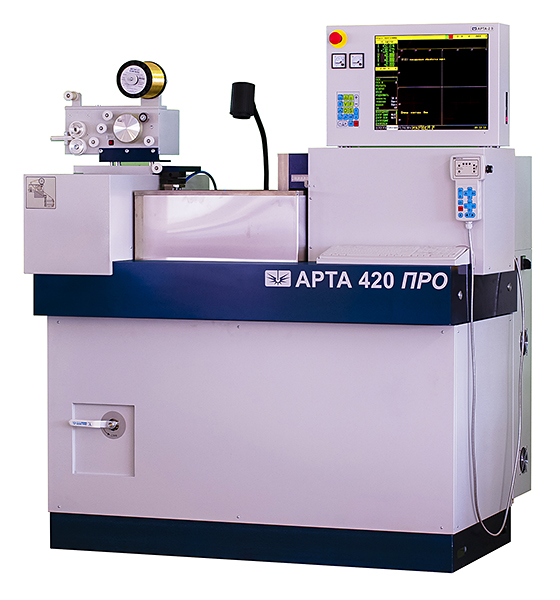

Precision 2 Axis Wire EDM Machine ARTA 420/ ARTA 420 PRO (Medium Size Class)

  • Submerge Type, Worktank with Lifting Mechanism

  • Axis Travel X x Y=200 x 320 mm

  • Maximum Workpiece Dimensions length x width x height = 420 x 280 x 120 mm

     General Technical Parameters:

Machine

ARTA 420

ARTA 420 PRO

Type of machining

Submerged Type (Worktank with Lifting Mechanism) Wire cut machining

Number of Axis

2 (X, Y)
(
optionaly up to 3 - with additional rotatory W Axis)

Maximum Workpiece Dimensions (W x D x H)

420 x 280 x 120 mm
(Height Optional up to H=150 mm)

X - Axis Travel
Y - Axis Travel

200 mm
320 mm

Wire Material

brass / copper / tungsten / molybdenum

Available Wire Diameters

0,10 - 0,30 mm (Standard)
(
optional from 0,02 mm)

Spool Type (weight)

DIN125 (4 kg) / P5 (5 kg)

Wire Guides

Natural Diamond Guides

X, Y Axis Repeatable Positioning

+/- 1 µm

X, Y Axis Working Step

0,1 µm

Resolution of Positioning (in CNC program)

1 µm

Digital Numerical Control of All Machine Subsystems

- Wire Circuit;
- Pulse Generator;
- Filtration /
Dielectric System;
- Worktank Lifting Mechanism

Dielectric

- Standart (Tap) Water
-
Deionized water(for Better Cutting Results)

Dimensions of the Machine (W x D x H)
Total W
eight of Equipment (without Filtration and Dielectric system)

1500 x 1100 x 1700 mm
110
0 kg

Input Voltage

220 V

Maximum Energy Consumption (without  Filtration and Dielectric system)

3,0 kVA

5,0 kVA

     Specification (Standard):

Machine

ARTA 420

ARTA 420 PRO

Numerical control System

model: ARTA-2.9

Standard Functions

- Complete Measuring Cycles for Workpiece and Wire-Electrode Setup
- Complete Information on Job in Progress including Graphics

- Programming during Machining Process
- Automatic S
toring of All Settings in Case of Power Failure (including Emergency) with Automatic Recovery of Interrupted Tasks
- Built-in Help and Technology Library

Display

19" TFT

NC Programming

- Built-in editor
- CAD-CAM System (including
FriCAD / to be installed on a workplace programmer)

NC Program Input

- External USB Flash-Drive
- On-board
USB Flash-Disk
- Ethernet

System Components

Industrial Computers and Controllers (Service Life Of Not Less Than 10 Years)

Smart Pulse Generator

model: ARTA-3M

model: ARTA-5M

Element Base, Architecture

Power Modules Based on the Powerful MOS Transistors with Microprocessor Control of All Parameters (32-bit microcontroller)

MOS Transistors Based Power Modules with Spark Gap Direct Switching System (Microprocessor Control of All Parameters with 32-bit Microcontroller)

Maximum Cutting Speed (Steel)

90 mm2/min

140 mm2/min

Roughness Ra:
- First
Cut (no less)
- M
aximum Achievable


2,5 µm
0,8
µm


1,5 µm
0,6
µm

Basic Features

- machining is possible in ordinary water (without deionization)
- wide range of adjustment of parameters of technological pulses (including provides machining of special materials (magnets, graphite, PCD and others) and applying of very thin wires diameter from 10 µm)
- fast adaptive protection system of wire breakages on the basis of microprocessor control
-digital setting pulses from functional keyboard CNC system and through technological control program commands



Mechanism of Movement (X, Y axes)

Linear Guideways Precision Class, Precision Ballscrew (THK, Japan)

Winding / Tension Wire Mechanism

On the Basis of the Powder Brake Clutch, Gear Motor; Microprocessor Control of All Parameters by CNC System

Wire Guides

1 (one) Set of Diamond Guides (Wire Diameter Defined by the Customer);
T
ypical Diameters, mm: 0,10/ 0,15/ 0,20/ 0,25/ 0,30;
S
et of Spare Parts Includes 1 (one) Spool Wire (4kg) under the Diameter of the Customer

Tank lifting mechanism

On the Basis of Actuator with low noise and Guides CAMOZZI

Spare parts, Documentation

Spare Parts Kit (Set of Consumables for an Initial Period, Spare Parts, Tools and Others), Documentation Kit; Quality Certificate

Additional Remote Control

+
(I
ncluded)

CAM System FriCAD (for AutoCAD)

+
(Included
)

The Basic Cost of the Machine Includes

- Transport Packaging is Basic and Additional Sets
- Customer T
raining
- W
arranty for 24 months
