Optional equipment for Wire EDM Machines ARTA 123 (PRO)/ 153 (PRO), ARTA 420 (PRO)/ 453 (PRO)

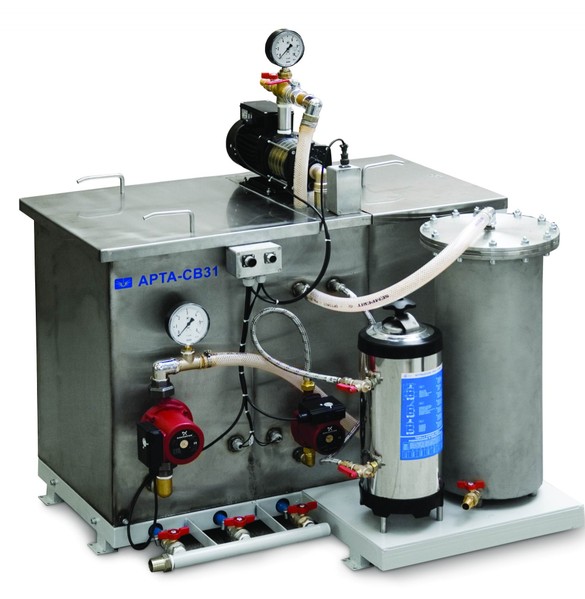

Hydraulic (Dielectric) Unit (models ARTA-SV31 320 l, ARTA-SV32 500 l)

The Use with the EDM Machine Provides:

  • Improved Performance

  • Higher Stability (Repeatability) of the Processing Results

  • Improved Surface Quality (Roughness Ra)

  • Environmental Compliance Equipment Operation



model

ARTA-SV31
(working volume 320 l)
for EDM Machines АРТА 1ХХ

ARTA-SV32
(working volume 500 l)
for EDM Machines АРТА 420

ARTA-SV40
(working volume 430 l)
for EDM Machines АРТА 453

Basic Features

- on the basis of reliable noiseless circulation pumps and pumping (GRUNDFOS)
-3 outline: cleaned through the filter cartridge, water supply high pressure in the treatment zone, the deionization circuit
- automatic control by CNC system

Type of Filters

Paper (ETF-4)

Dimensions (W x D x H)

1050 x 950 x 1270 mm

1250 x 1100 x 1270 mm

1000 x 1100 x 1300 mm

Weight (without water)

140 kg

170 kg

180 kg

Input Voltage
Maximum Energy Consumption

220 V
1,0 kVA

                             _____________



The performance of the machine on the basis of the universal Winding / Tension Wire Mechanism with precision marker receiver waste wire and an additional set of special brackets with V-shaped type Guides (provides additional technological possibility of using wire electrodes with small diameters from d = 0.02 mm);
option available for all models except series ARTA 453

                             _____________

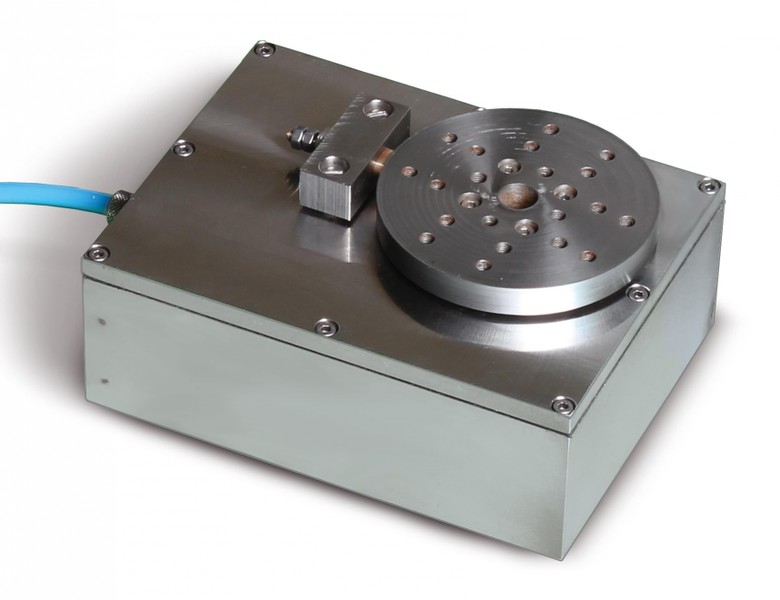

Additional rotary table controlled by CNC system (3rd/ 6-th axes of the machine)

                             _____________

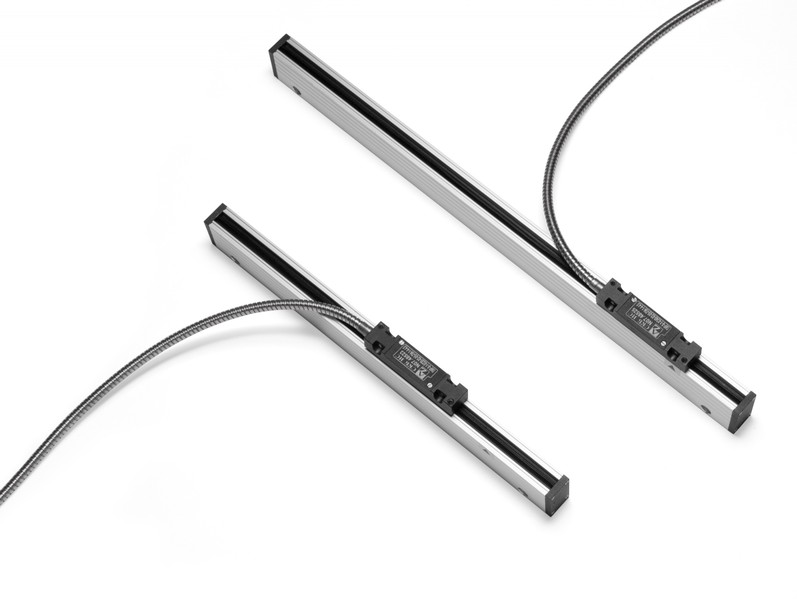

Optical Linear Encoders X, Y axes

                             _____________

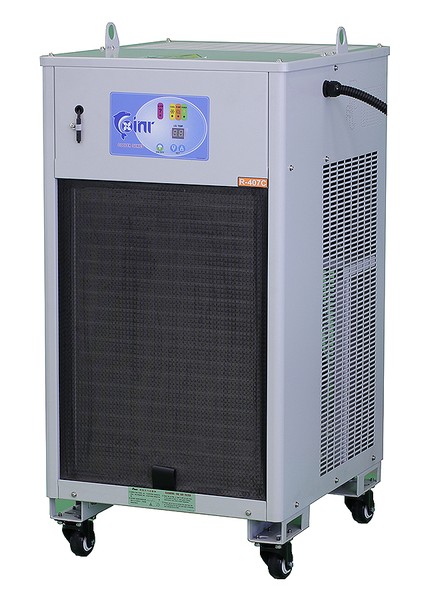

Refrigerator thermostat (Cooler) to automatically maintain the desired temperature of the working fluid

                             _____________
